Creating call center payments via x++ is a challenging and increasingly common task that every architect needs to know.  It's a reasonable client request to integrate or create payments, and it's something that needs to work perfectly, and often at a high velocity and scale.  There's a lot to cover and I don't want anyone to read more than they have to, so the series will first cover the whole process as simply as possible, with a cash payment, and then get into more complicated methods of payment like credit cards, and implications around order completion and invoicing.

The functional overview is:

  1. Create a sales order, header and lines - Assuming this is already accomplished
  2. Create a payment record (MCRCustPaymTable) per payment.  This is the final step for cash payments
  3. Associate each payment record with ancillary payment information (eg gift card, credit card)

After payments are created, the order will need to be completed (MCREndOrder class) and ultimately invoiced.

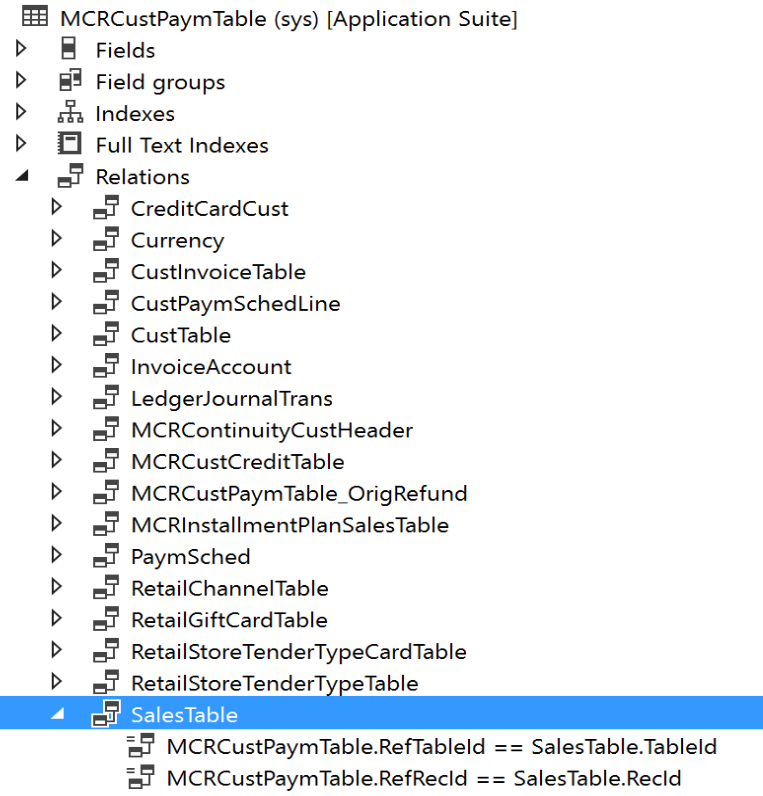

The MCRCustPaymTable is the linchpin to the entire process.  It's many to one relationship with the sales order means enables customers to pay with multiple methods of payment on one order.  It could be cash and a credit card; two different credit cards; a gift card, credit card, and cash – there are unlimited possibilities.

Cash payments are the simplest because an entire cash payment entry is contained on the MCRCustPaymTable record, whereas credit and gift cards have to be fleshed out in other tables, and then referenced back using table and rec ids.

Here is an example of how to add a single cash payment to a sales order, inspired by the RetailTransactionPaymentsHelper class:

static mcrCustPaymTable createCallCenterPaymentRecord()

    MCRCustPaymTable mcrCustPaymTable;

    SalesTable					salesTable = SalesTable::find('SalesId');
    CurrencyCode				currency = 'USD';
    str							paymentType = 'Cash';
    real						amount = 10;
    MCRCustPaymStatus			mcrCustPaymStatus = MCRCustPaymStatus::NotSubmitted;

        mcrCustPaymTable.Channel        = salesTable.retailSalesTable().RetailChannel;
        mcrCustPaymTable.CurrencyCode   = currency;
        mcrCustPaymTable.TenderTypeId   = paymentType;
        mcrCustPaymTable.RefTableId     = salesTable.TableId;
        mcrCustPaymTable.RefRecId       = salesTable.RecId;
        mcrCustPaymTable.CustAccount    = salesTable.CustAccount;
        mcrCustPaymTable.Status         = mcrCustPaymStatus;
        mcrCustPaymTable.CustPaymType   = MCRCustPaymTable::getMCRTypeFromTender( mcrCustPaymTable.TenderTypeId,

        switch (_mcrCustPaymStatus)
            case MCRCustPaymStatus::NotSubmitted:
            case MCRCustPaymStatus::Authorized:

                mcrCustPaymTable.Amount = CurrencyExchange::round(amount, _currency);


        RetailTracer::Error('RetailTransactionPaymentsHelper', funcName(), strFmt('Error during Call Center payment (MCRCustPaymTable) creation:\nSalesId [$%1]\n', _salesTable.RecId));

	return mcrCustPaymTable;

That's it!  Cash is one of the few payments that doesn't require an extra table and relation.  Although fleshing out credit cards, gift cards, and installments require additional tables and information, the design pattern for them will be the same.
